Vertical Turning Lathe

Vertical Turning Lathe

Our customer profile includes large infrastructure providers such as , heavy duty turbocharged diesel and gas engines, wind power turbines & valves manufacturers, leading auto OEM’s etc., both in the domestic and overseas markets.

Machine Specification - PUMA 550

Capacity

Recom. Machining diameter	550 mm
Maximum machining diameter	730 mm
Maximum work length	750 mm

Travel

X axis	390 mm
Z axis	780 mm

Spindle

Chuck diameter	380 mm
Speed range	2000 rpm

Turret

No. of stations	8
OD tool height	32 mm
Boring bar diameter	50 mm

Feed Rate

Rapid traverse (X/Z)	12 / 16 m/min
Maximum cutting feed (X/Z)	500 / 500 mm/rev

Motor

Spindle (Power)	37 kw
Feed drives (X/Z)	2.1 / 3.8 kw
Coolant pump	0.25 kw

General

Power requirements	50 KVA
CNC System	FS 18iT

Machine Size

Dimension of machine	1905 x 2720 x 3070 mm
Machine weight	9000 kgf

Tank Capacity

Lubrication tank	1.5 lts
Hydraulic tank	80 lts
Coolant tank	190 lts

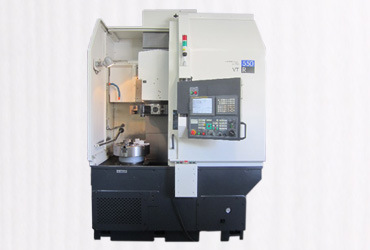

Machine Specification - HWACHEON VT 550

Capacity

Swing over bed	Ø 820 mm
Swing over Saddle	Ø 530 mm
Max. turning dia	Ø 650 mm
Std. turning dia	Ø 312 mm
Max. turning length	700 mm
Chuck size	15"

Spindle

Max.spindle speed	1500 rpm
Spindle nose	A2-11
Spindle bearing inner dia	Ø 160 mm

Turret

No. of Tool stations	12
Tool size	Ø 25 x Ø 50 mm
Turret indexing time	0.8 sec

Travel

Rapid traverse (X/Z/B)	20/20 m/min
X-axis travel	350 mm
Z-axis travel	790 mm

Motor

Spindle motor	22/18.5 kw
Servo motor	3.0/4.0 kw
Lubrication pump	0.053 kw
Hydraulic pump	2.2 kw
Coolant pump	AC 0.9+0.4 kw

Power Source

Elecrical power supply	45 KVA

Machine Size

Dimension of machine	3,000 x 2,200 x 3300 mm
Machine weight	13,000 kgf

Tank Capacity

Lubrication tank	12 lts
Hydraulic tank	40 lts
Coolant tank	350 lts

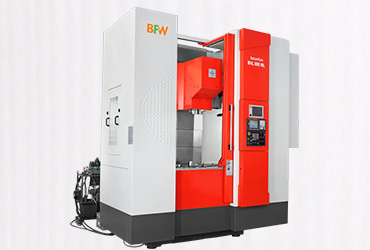

Machine Specification - BFW BVL 800

Capacity

Swing over bed	Ø 1000 mm
Swing over Saddle	Ø 540 mm
Max. turning dia	Ø 650 mm
Std. turning dia	Ø 600 mm
Max. turning length	850 mm
Chuck size	650 mm

Spindle

Max.spindle speed	1500 rpm
Spindle nose	A2-11
Spindle bearing inner dia	Ø 160 mm

Turret

No. of Tool stations	12
Tool size	Ø 25 x Ø 50 mm
Turret indexing time	0.8 sec

Travel

Rapid traverse (X/Z/B)	20/20 m/min
X-axis travel	350 mm
Z-axis travel	790 mm

Motor

Spindle motor	22/18.5 kw
Servo motor	3.0/4.0 kw
Lubrication pump	0.053 kw
Hydraulic pump	2.2 kw
Coolant pump	AC 0.9+0.4 kw

Turn Mill

Spindle motor	5.5/3.7 kw
Max.speed	2000 rpm
Max. drilling	Ø 26 mm
Max. tapping	M20
Indexing degree	2.5° MTR type

Power Source

Elecrical power supply	50 KVA

Machine Size

Dimension of machine	2870 x 2,200 x 3300
Machine weight	9500KGF

Tank Capacity

Lubrication tank	5 lts
Hydraulic tank	32 lts
Coolant tank	300 lts

Machine Specification - BFW BVL 550

Capacity

Swing over bed	Ø 650 mm
Swing over Saddle	Ø 550 mm
Max. turning dia	Ø 550 mm
Std. turning dia	Ø 450 mm
Max. turning length	500 mm
Chuck size	315 mm

Spindle

Max.spindle speed	2500 rpm
Spindle nose	A2-8
Spindle bearing inner dia	Ø 120 mm

Turret

No. of Tool stations	8
Tool size	Ø 25 x Ø 25 mm
Turret indexing time	2 sec

Travel

Rapid traverse (X/Z/B)	24/24 m/min
X-axis travel	320 mm
Z-axis travel	530 mm

Motor

Spindle motor	22/18.5 kw
Servo motor	3.0/4.0 kw
Lubrication pump	0.053 kw
Hydraulic pump	2.2 kw
Coolant pump	AC 0.9+0.4 kw

Power Source

Elecrical power supply	50 KVA

Machine Size

Dimension of machine	2900 x 3800 x 3200
Machine weight	6500Kg

Tank Capacity

Lubrication tank	3 lts
Hydraulic tank	32 lts
Coolant tank	300 lts
