Vertical Machining Center

Vertical Machining Center

Our customer profile includes large infrastructure providers such as , heavy duty turbocharged diesel and gas engines, wind power turbines & valves manufacturers, leading auto OEM’s etc., both in the domestic and overseas markets.

Machine Specification - HWACHEON SIRIUS 550

Capacity

X/Y/Z axis travel	1150 / 550 / 550 mm
Distance from table surface to spindle nose	150 - 700 mm
Distance from column to spindle center	580 mm

Table

Surface (L x W)	1300 x 550 mm
Max weight on table	800 kgf
T-slots	18H8 / 100 / 5EA mm (W-P-No)

Spindle

Max speed	10000 rpm
Bearing ID	Ø 70 mm
Taper hole	NT # 40 (7/24 Taper)

Feed Rate

Rapid (X/Y/Z)	40/40/30 m/min
Max cutting	24 m/min

ATC

Tool shank	MAS-403-BT40 (USA:CAT 40)
Tool capacity	30
Max tool diameter	Ø 85 - 170 mm
Max tool length	250 mm
Max tool weight	6 kgs

Motor

Spindle	5.5 / 7.5 kw
Feed (X/Y/Z)	3.0/3.0/4.0 kw
Coolant pump	0.4 + 0.9 kw

General

System	FANUC 0i-MB
Dimension of machine	3000 x 3005 x 3000 mm
Weight	7000 kgf

Power Source

Electrical power	25 KVA
Electrical Voltage	AC 220/200 ± 10% Volt
Compressed air	0.5 - 0.7 Mpa

Tank Capacity

Coolant tank	300 lts

Machine Specification - LEADWELL MCV 1100

Capacity

X-axis travel	1100 mm
Y-axis travel	610 mm
Z-axis travel	610 mm
Distance from table top to spindle end	120-730 mm
Spindle center to column	660 mm

Table (Pallet)

Working surface (height x width)	1300 x 600 mm
Permissible mass of workpiece	1000 kg
T-slots	18H8 / 100 / 5EA mm (W x P x No)

Spindle

Spindle speed	8000 rpm
Spindle nose (nominal size, NO.)	No. 40

Feed Rate

Rapid traverse XY/Z	15/15 m/min
Max.cutting	5 m/min

ATC

Tool storage capacity (armless type opt.)	24 (20/16)
Max.tool diameter (with adjacent tools)	90 mm (150mm - No adjacent)
Max. tool length	250 mm
Max tool weight	7 kgs
ATC time T/T	4 sec
ATC time C/C	5 sec

Motor

Spindle motor FANUC	11 kw
X,Y,Z - axis feed motors	2.1/2.1/2.1 kw

Machine Size

Dimension of machine	3,000 x 2,280 x 2685 mm
Power requirement	25 KVA
Air Source	0.6 Mpa or 6 Bar (6kg/cm2)

Tank Capacity

Lubrication tank	4 lts
Hydraulic tank	10 lts
Coolant tank	450 lts

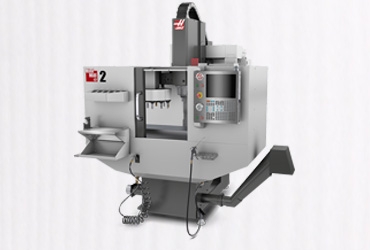

Machine Specification - HASS

Travel

X-axis	406 mm
Y-axis	305 mm
Z-axis	254 mm

Table

Length (total)	914 mm
Length (work surface)	730 mm
Width	305 mm
Max weight on table	227 kg

T -Slots

T-slot width	15.875 mm
Number of T-slots	3
Center distance	110 mm

Spindle

Taper size	#40 Taper
Speed	0-10000 rpm
Transmission	Belt-Driven
Max torque	23 Nm @ 2400 rpm
Spindle motor max rating	11.2 kw
Spindle nose to table top	102-356 mm

Brushless Axis Motors

Max rating	2.24 kw
Max thrust rating	8896 N

Feed Rate

Max rapids	30.5 m/min
Max.cutting	21.2 m/min

Tool Changer

Capacity	10
Type	CT 40
Max tool diameter	89 mm
Max tool weight	5.4 kgs

Accuracy

Positioning	+/- 0.0051 mm
Repeatability	+/- 0.0025 mm

General

Air Required	6.9 bar, 113 lpm
Air Required	208 VAC 3-Phase, 50A

Tank Capacity

Lubrication tank	2 lts
Coolant tank	90 lts
