Surface Grinding

Surface Grinding

Our customer profile includes large infrastructure providers such as , heavy duty turbocharged diesel and gas engines, wind power turbines & valves manufacturers, leading auto OEM’s etc., both in the domestic and overseas markets.

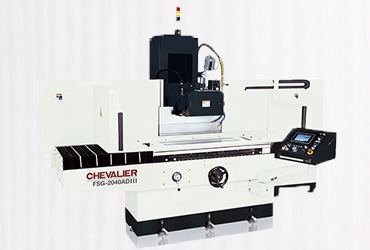

Machine Specification - ALEX

Capacity

Max Grinding length (Longitudinal) 650 mm
Max Grinding width (Crosswise) 305 mm
Max distance from table surface to spindle centre 320mm
Magnetic chuck size 300 x 600 mm

Longitudinal Movement of Table

Maximum travel (Manual) 65000 mm

Cross Traverse Travel

Rapid travel (Approx.) 1500 mm/min
Automatic traverse increment 1-15 mm
Maximum automatic traverse travel 360 mm
Maximum manual traverse travel 370 mm
Hand wheel per Revolution 4 mm
Hand wheel per Graduation 0.02 mm
Micro feed per Revolution 0.1 mm (optional)
Micro feed per Graduation 0.002 mm (optional)

Wheelhead vertical Infeed

Hand wheel per Revolution 2 mm
Hand wheel per Graduation 0.01 mm
Rapid travel (Approx.) 330 mm/min (optional)
Micro feed per Revolution 0.2 mm (optional)
Micro feed per Graduation 0.002 mm (optional)

Grinding Spindle Drive

Speed 50 Hz /1500 RPM
Power Rating 4.7 kw

Grinding

Speed 50 Hz /1500 RPM
Power Rating 4.7 kw

Tank Capacity

Lubrication tank 5 lts
Hydraulic tank 100 lts
Coolant tank 400 lts
