Horizontal Machining Centre

Horizontal Machining Centre

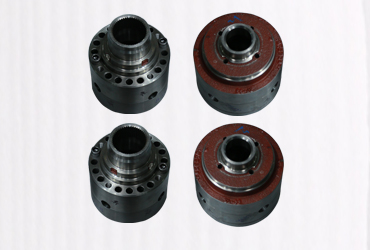

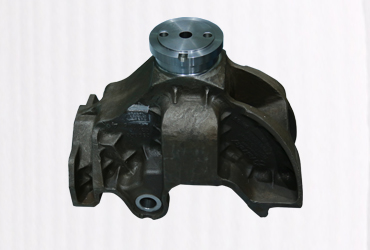

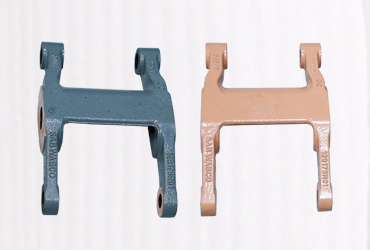

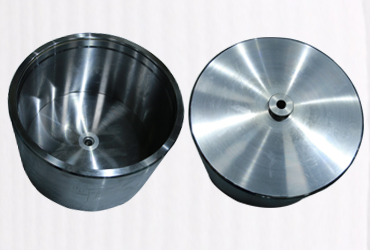

Our customer profile includes large infrastructure providers such as , heavy duty turbocharged diesel and gas engines, wind power turbines & valves manufacturers, leading auto OEM’s etc., both in the domestic and overseas markets.

HMC - TOYODA 550
HMC - OOTY 40

Machine Specification - TOYODA 550

Spindle

Drive motor (at 44% ED)	15 Kw
Drive motor (at 100% ED)	10 Kw
Speed	20-6000 rpm
Taper (As per DIN 69871)	A 45
Front bearing dia	Ø 80 mm
Tool clamp force	1250 kgf

Traverse

Table (X-axis)	630 mm
Spindle (Y-axis)	600 mm
Column (Z-axis)	630 mm
Spindle nose to table centre	120 mm min, 750 mm max
Spindle centre to table top	100 mm min, 700 mm max

Index / NC Rotary Table

Pallet table size	550 x 550 mm
Load capacity	600 kg
Contouring increments for NC Rotary table	0.001°
Max rotating speed	10 rpm
Pallet change time	18 sec

Automatic Tool Changer

Number of tools	40
Max tool dia	Ø 112 mm
Max tool with adjacent pockets empty	250 mm
Max tool length	450 mm
Max tool weight - normal	12 kg
Max tool weight - with reduced tool change speed	18 kg

Tank Capacity

Lubrication tank	5 lts
Hydraulic tank	100 lts
Coolant tank	400 lts

Machine Specification - HASS

Capacity

X-axis	406 mm
Y-axis	305 mm
Z-axis	254 mm

Table

Length (total)	914 mm
Length (work surface)	730 mm
Width	305 mm
Max weight on table	227 kg

Spindle

Taper size	#40 Taper
Speed	0-10000 rpm
Transmission	Belt-Driven
Max torque	23 Nm @ 2400 rpm
Spindle motor max rating	11.2 kw
Spindle nose to table top	102-356 mm

Brushless Axis Motors

Max rating	2.24 kw
Max thrust rating	8896 N

Feed Rate

Max rapids	30.5 m/min
Max cutting	21.2 m/min

Tool Changer

Capacity	10
Type	CT 40
Max tool diameter	89 mm
Max tool weight	5.4 kg

Accuracy

positioning	+/- 0.0051 mm
Repeatability	+/- 0.0025 mm

General

Air Required	6.9 bar, 113 lpm
Power Required	208 VAC 3-Phase, 50A

Tank Capacity

Lubrication tank	2 lts
Coolant tank	90 lts
