Conventional Machine

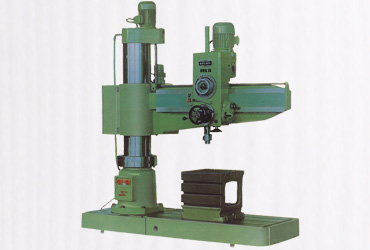

Machine Specification - BATLIBAI

Capacity

Drilling in Steel	60 mm
Drilling in cast iron	75 mm
Rough boring in steel	140 mm
Rough boring in cast iron	170 mm
Threading in steel	M48 x 3

Drill Head

Spindle nose taper	MT 5
Maximum spindle stroke	400 mm
Number of spindle speeds	16
Range of spindle speeds	50 - 1600 rpm
Number of power feeds	8
Range of power feeds	0.13 - 0.14 mm/rev

Working Range

Min./Max. distance from column to spindle	330/1350 mm
Min./Max. drilling radius	510/1530 mm
Drilling head traverse	1020 mm
Min./Max. distance from base plate to spindle nose	340/1440 mm
Vertical traverse of arm	700 mm
Column diameter	360 mm
Swing of arm	360º

Base Plate

Overall size	2340 x 980 x 210 mm
Working surface	15710 x 980 mm
Cast Tslots nos x width x pitch	3 x 22 x 250 mm

Power

Main motor - Dual speed	5/6 kw / 1500/3000 rpm
Arm elevating motor	1.5 kw / 750 rpm
Hydraulic clamping motor	0.4 kw / 1500 rpm

Weight

Net weight of machines	4000 kgs
Working space required L x W x H	4160 x 4160 x 3000 mm
Approximate packing size	2720 x 1320 x 2850 mm

Tank Capacity

Coolant tank

35 lts
